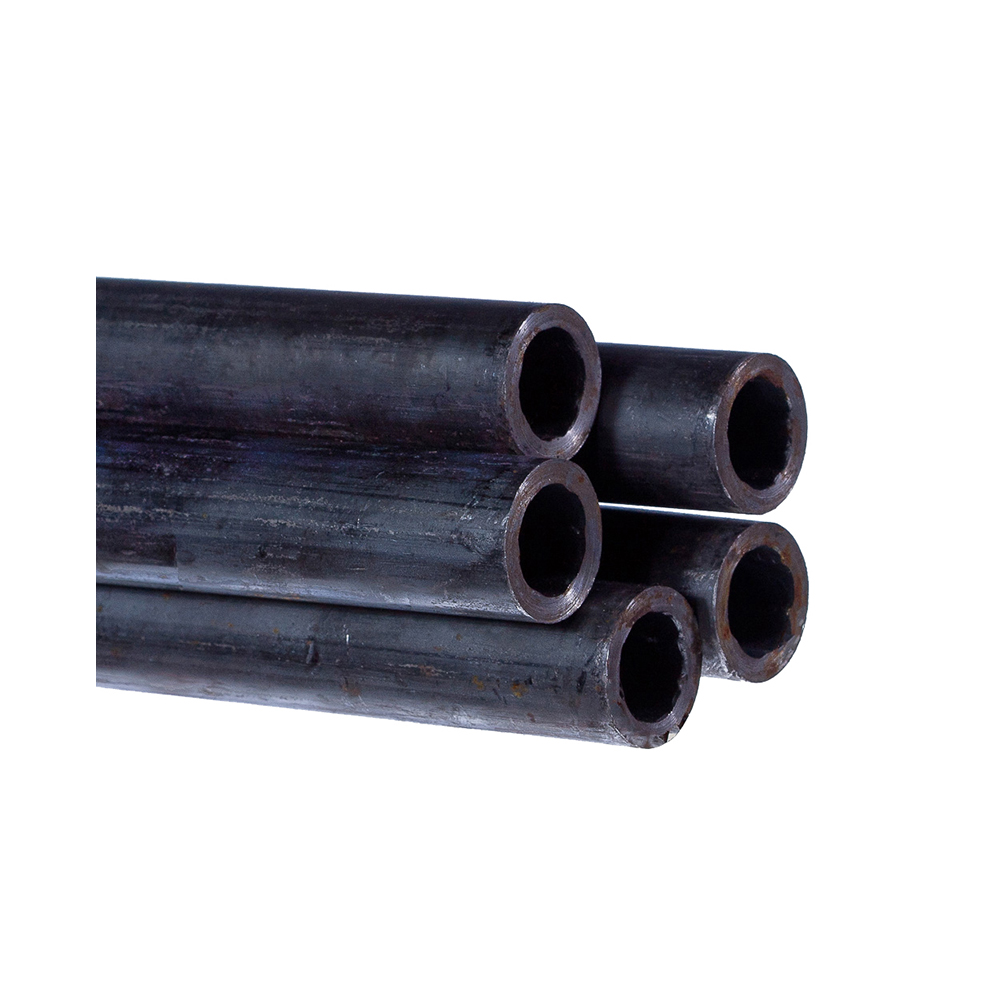

Carbon Steel Welded Pipes/Tubes
Carbon steel welded pipe and tube are used in high-pressure conditions. They are highly resistant to shock and vibration, making it ideal to transport fluids. Carbon steel pipes are widely used in a number of industries, such as transporting water and sewage, oil and gas industries, boiler and condenser tubes, high-pressure applications, and chemical processing.
- Transporting water and sewage
- Oil and gas industries
- Boiler and condenser tubes
- High-pressure applications
- Chemical processing
Product Specification and Size
API 5CT | |||
Product | Executive Standard | Dimension (mm) | Steel Grade |
Casing | API 5CT | Ø48.3~273 x WT2.77~11.43 | J55, K55, N80, L80 |
Tubing | API 5CT | Ø48.3~273 x WT2.77~11.43 | J55, K55, N80, L80, H40 |
API 5L | |||
Product | Executive Standard | Dimension (mm) | Steel Grade |
Lining Pipes | API 5L | Ø60.3~273.1 x WT2.77~12.7 | A25, A, B, X42, X46, X52, X56, X60, X65, X70, X80 |
ASTM/ASME | |||
Product | Executive Standard | Dimension (mm) | Steel Grade |
Electric-Resistance-Welded Steel Pipes | ASTM A135 | Ø42.2~114.3 x WT2.11~2.63 | A |
ERW and Hot-dip Galvanized Steel Pipes | ASTM A53 | Ø21.3~273 x WT2.11~12.7 | A, B |
Pipes for Piling Usage | ASTM A252 | Ø219.1~508 x WT3.6~12.7 | GR.2, GR.3 |
Tubes for General Structural Purpose | ASTM A500 | Ø21.3~273 x WT2.11~12.7 | GR.2, GR.3 |
Square Pipes for General Structural Purpose | ASTM A500 | 25 x 25~160 x 160 x WT1.2~8.0 | Carbon Steel |
