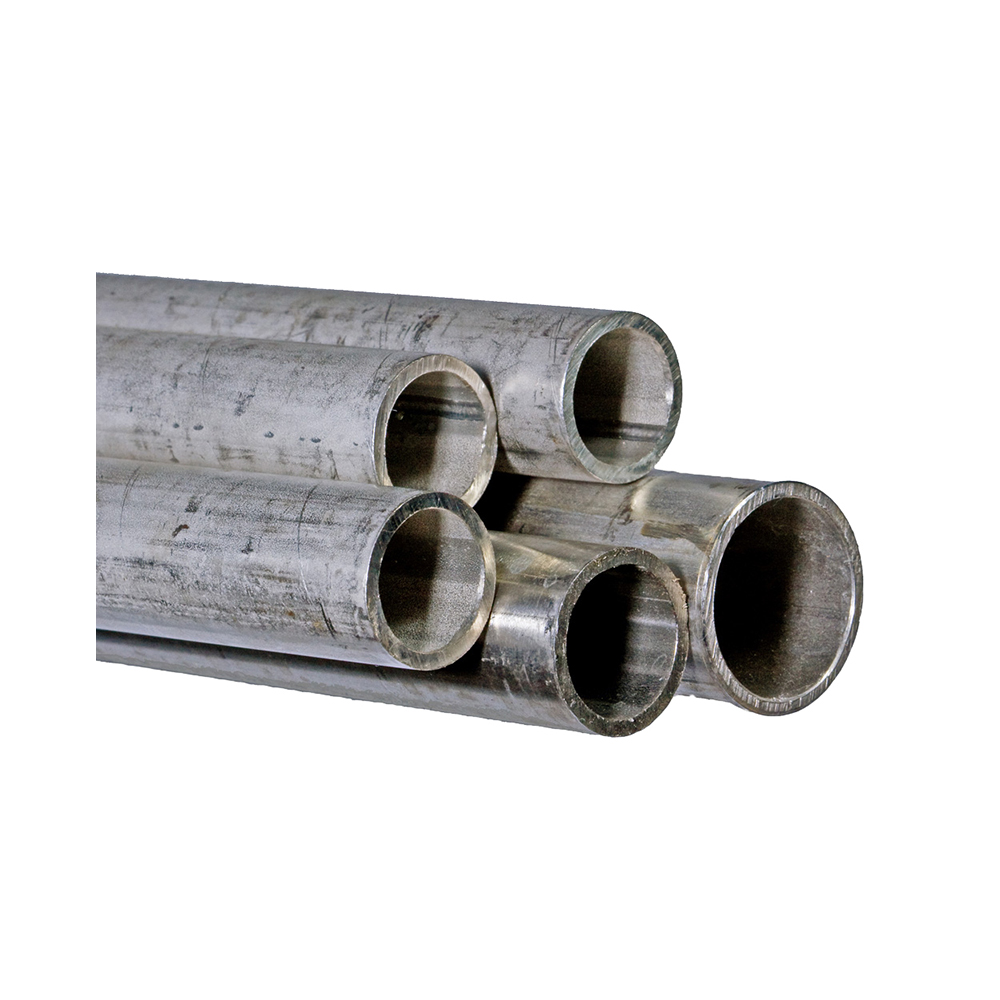

Stainless Steel Welded Pipes/Tubes

Type Pipes & Tubes

E-mail info@trustworthydl.com

Detail

Stainless steel pipe (tube) has excellent characteristics of corrosion resistance and smooth finishing. Stainless steel pipe (tube) is commonly used in demanding equipment like automobiles, food processing, water treatment facilities, oil and gas processing, refinery and petrochemicals, breweries and energy industries.

- Automotive industries
- Food processing
- Water treatment facilities
- Breweries and energy industries

Product Specification and Size

ASTM/ASME
Product	Executive Standard	Dimension (mm)	Steel Grade
Industrial Pipes	ASTM A312, A358, A778	OD: 1/4"~40" WT: SCH5S~SCH80S	TP304, TP304L, TP316L etc.
Tubes for Boiler and Heat-Exchanger, General Service Tubing	ASTM A249, A269	OD: 15.9~139.8mm WT: 1.6~5.0mm	TP304, TP304L, TP316L etc.
Mechanical and Structural Tubes	ASTM A554	OD: 7.9~152.4mm WT: 0.5~6.5mm	MT304, MT304L, MT316L etc.
Square Tubes	ASTM A554	OD: 12.7x12.7~150x150mm WT: 0.7~6.5mm	MT304, MT304L, MT316L etc.
Rectangular Tubes	ASTM A554	OD: 10x20~100x200mm WT: 0.7~6.5mm	MT304, MT304L, MT316L etc.
Sanitary Tubing	ASTM A270	OD: 25.4~165.2mm WT: 0.8~3.05mm	TP304, TP304L, TP316L etc.
